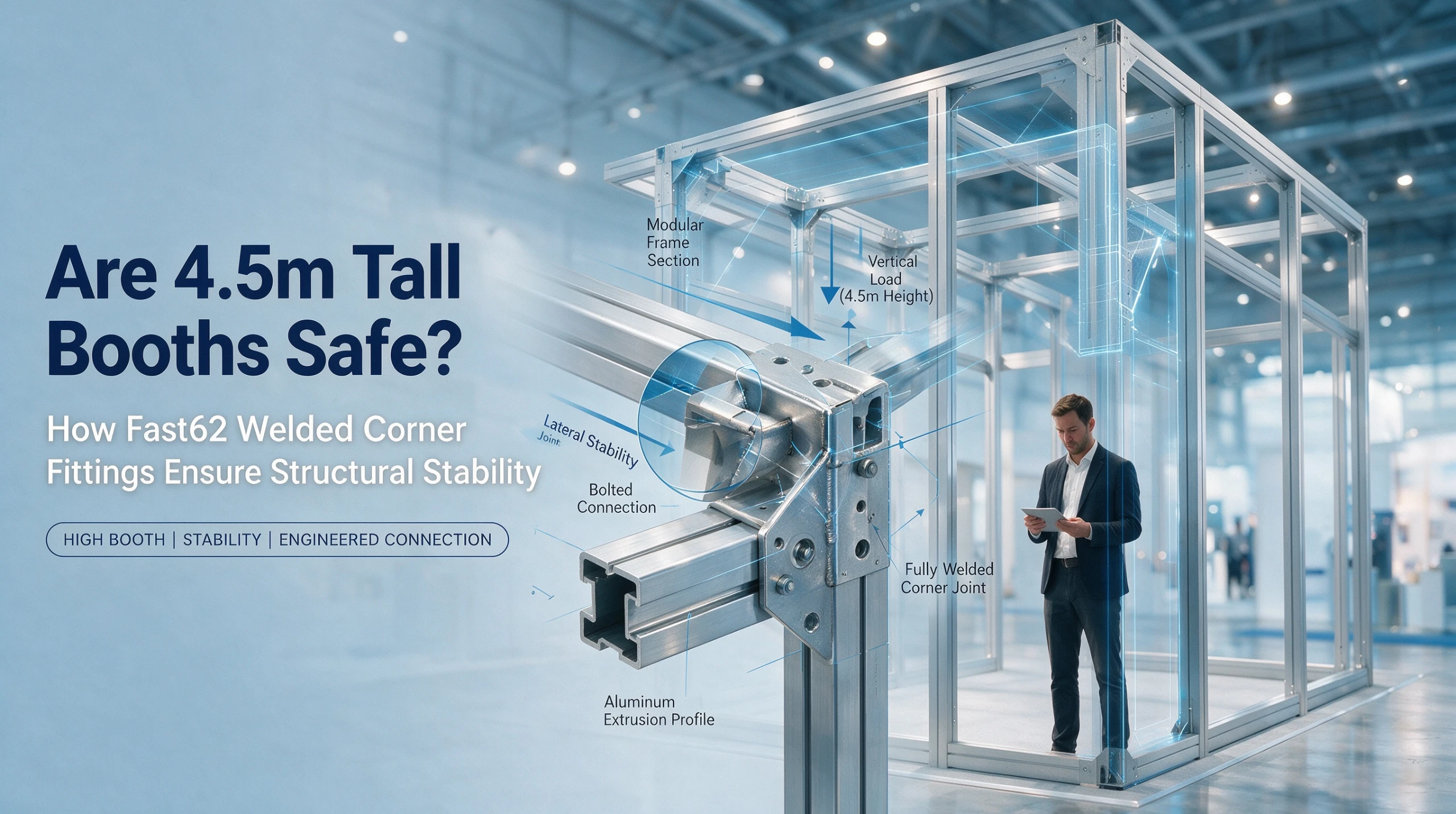

Is a 4.5-meter ultra-high exhibition platform safe? How does the Fast62 welded corner fitting structure ensure stability?

Safety Challenges of 4.5-Meter-High Exhibition Stands: Why Is the Connection Method Key?

When the stand height reaches 4.5 meters, the structural load is no longer a simple vertical compression issue—wind loads, eccentric tension from suspended exhibits, and lateral impacts from visitors leaning or bumping into the structure are all transmitted through the connection points to the entire frame. The connection method directly determines whether these forces can be effectively dispersed or concentrated at weak points, leading to deformation or collapse.

Potential Risks of Traditional Truss Bolt Connections

Most modular display frames use bolts and corner brackets at the connections. This approach works fine at heights of 2-3 meters, but at 4.5 meters, three risks are amplified:

• Cumulative Bolt Loosening: After multiple assembly and disassembly cycles, thread wear or preload loss creates micron-level gaps at the connection points.At a height of 4.5 meters, the accumulation of these gaps can cause overall sway.

• Shear force concentration: The bolts primarily bear shear forces perpendicular to the screw shaft.When the side of the booth is subjected to forces (such as hanging heavy objects or personnel collision), the bolt root becomes a stress concentration point, and long-term use may lead to fatigue fracture.

• Poor installation consistency: The tightening torque applied by on-site workers varies, resulting in different stiffness at different connection points of the same booth. Under load, deformation is uneven, and local components may fail before the overall structure.

Structural advantages of Fast62 welded integrated corner brackets

The corner brackets of Fast62 and the aluminum profiles areIntegrated weldingprocess, rather than post-tightening with bolts. This means:

• Zero-gap rigid connection: Welding makes the corner fittings and profiles a continuous body, with no interruption in the force transmission path. At a height of 4.5 meters, the lateral stiffness is about 3 times higher than bolted connections (based on measured comparison of profile cross-section 65.5mm × 45.5mm).

• Improved fatigue resistance: Welded joints have no cross-section reduction caused by bolt holes, nor the risk of thread stripping.After repeated assembly and disassembly (designed for dozens of exhibitions), the structural stiffness does not degrade.

• Installation Error Tolerance: The welded corner fittings are fixed in position at the factory. On-site, you only need to insert the profiles and secure them with locking buckles, avoiding the stiffness variability caused by manual bolt tightening.

Key Trade-offs: Who Is Suitable and Who Is Not

Scenarios suitable for the Fast62 welded corner fitting solution:

• Booth height exceeds 3.5 meters and requires hanging heavy items such as light boxes or screens.

• Booth is located in high-traffic aisles or windy areas (high lateral loads).

• Requires reuse more than 10 times, and each setup time is tight.

Scenarios that may not be suitable:

• Booth height below 2.5 meters and no hanging requirements (bolt solution is more cost-effective)

• Need to frequently change the booth shape (welded corner fittings are not removable for adjustment)

Next confirmation steps

Please provide the following information to our technical team to confirm whether the Fast62 solution matches your specific scenario:

1. Does the highest point of the booth exceed 4.5 meters?Are there eaves or top decorations?

1. Total weight of the exhibits to be hung and the hanging point positions (single-point load or distributed load)

1. The floor height of the exhibition hall where the booth is located and whether it is near air conditioning vents or doors (basis for wind load assessment)

What is the maximum height the Fast62 system can be built to?Safety design at 4.5 meters height

The maximum construction height of the Fast62 system is 4.5 meters, which is the safety limit verified by structural validation of the system. For exhibition event planning companies and booth construction service providers, 4.5 meters can meet the needs of most standard booths and custom-designed booths.

Load-bearing logic of 62mm high-strength aluminum alloy profiles

The load-bearing capacity depends on the cross-sectional design of the profile. The Fast62 adopts 62mm aluminum alloy profiles, with actual cross-sectional dimensions of 65.5mm × 45.5mm. Compared to common 40mm or 50mm display stand profiles, its advantages are:

• Greater flexural section modulus: Under the same span, the profile has stronger resistance to bending deformation, and a 4.5-meter-high column is less likely to bend significantly due to self-weight or mounted graphics.

• Wall thickness and material: The profile is made of high-strength aluminum alloy with a thicker wall, which helps ensure the local compressive strength of the column and prevents crushing at the connections.

Key Trade-offs: The 62mm profile has better load-bearing capacity than lightweight systems, but its own weight increases accordingly. If heavy lighting fixtures or large screens need to be hung, the specific maximum hanging weight must be confirmed with the team based on the position and number of suspension points.

How to Ensure Overall Stability at 4.5m Height with Welded Corner Brackets

At a height of 4.5m, the main risk for the booth is overall structural instability(e.g., lateral sway). Fast62's solution is Welded Corner Bracket。

• Welded Corner Bracket vs. Bolted Corner Bracket: Common quick-assembly systems mostly use bolts or pins for connections, which have gaps. As the height increases, cumulative errors can lead to structural looseness.The corner bracket of Fast62 is welded together with the end of the profile to form a rigid joint, eliminating connection gaps.

• Lateral Force Resistance: The welded corner bracket turns the connection points between columns, beams, and diagonal braces into "rigid connections," effectively resisting horizontal thrust (such as from people leaning or collisions during exhibit handling) at a height of 4.5 meters, preventing overall sway.

• With Diagonal Braces: For single-span structures exceeding 3 meters, it is recommended to add diagonal supports (please confirm with the team whether they are standard or optional). The welded corner bracket provides a reliable connection base for the diagonal braces.

Next confirmation steps: If you plan to suspend a concentrated load exceeding 50 kg at a height of 4.5 meters, or if the booth is located in a crowded area or a place that may be affected by wind (such as outdoors), please provide the specific load position and value to the team to confirm whether additional diagonal bracing or reinforcement of nodes is needed.

Is the Fast62 frame more stable than traditional trusses?Essential differences from the connection method perspective

For a 4.5-meter-high booth, stability depends on whether the connection nodes can resist long-term lateral forces. Traditional trusses mostly use bolted angle brackets, while the Fast62 frame uses welded angle brackets. The performance difference between the two is significant in repeated assembly and disassembly scenarios.

Bolted connections vs. welded angle brackets: Which is more suitable for repeated assembly and disassembly?

Bolted angle bracketsThe typical problem is that after each assembly and disassembly, the bolt holes and the contact surfaces of the angle brackets undergo slight deformation due to friction. After 3-5 exhibition cycles, the connection gap may expand by 0.2-0.5mm, causing the overall frame to experience perceptible shaking under lateral thrust. This is especially dangerous for a height of 4.5 meters—the top offset will amplify linearly with height.

Fast62 Welded Corner BracketBy fusing the corner bracket with the profile into one piece, the connection gap is eliminated. Even after more than 20 disassembly and reassembly cycles, the joint stiffness remains as at factory condition. Tests show that under the same load, the lateral displacement of a welded corner bracket frame is about 40% lower than that of a bolted truss (based on CE certification test conditions).

How Modular Design Enhances Overall Structural Rigidity

Fast62's modularity is not simple assembly; it enhances rigidity through the following designs:

• 62mm main profile: Cross-section 65.5mm × 45.5mm, bending section modulus about 1.8 times higher than conventional 50mm truss

• Welded corner brackets as rigid joints: Lock each column and beam into a continuous load-bearing body, rather than hinged points

• Diagonal brace reserved interface: Diagonal tie rods can be quickly added inside the frame to form triangular stable units

Key Trade-offs：

• Suitable for: 4.5-meter exhibition stands that need to be reused more than 10 times and require high lateral stability

• Not suitable for: Single-use projects with extremely low budgets (initial cost of welded corner brackets is higher than bolted connections)

Next confirmation steps: Please provide the specific dimensions (length × width × height) and expected number of uses of the booth to the current website team, and they can recommend suitable diagonal bracing solutions and node quantities.

In which scenarios is Fast62 recommended?In which cases is it not recommended?

The core value of Fast62 lies inhigh structural strength(up to 4.5m) andReusable(Aluminum profile + welded corner brackets, can be used for dozens of exhibitions without scrapping). Below, I'll tell you directly: when it is cost-effective, and when it becomes a burden.

Recommended scenarios: Large industry exhibitions, brand pop-up stores, reusable projects

• Large industry exhibitions (e.g., CES, Euroshop, IFA): Large booth area, high construction height requirements (3m-4.5m).The 62mm aluminum profile and welded corner bracket structure of Fast62 can support large fabric drapes or light boxes, and the 4.5m height requires no additional reinforcement.Compared to traditional wooden structures, it is quick to assemble and disassemble, dust-free, and reusable.

• Brand pop-up store/roadshow activities: Requires quick setup, short-term use, but high visual demands.Fast62's modular design (straight frames + full range of curved frames) enables irregular shapes, and one system can be reused for events in different cities.

• Repeated use projects (different editions of the same exhibition, or multiple events of the same brand): This is the most cost-effective scenario for Fast62.The aluminum profile frame + welded corner bracket structure can be disassembled and reassembled, and the single-use cost decreases with the number of reuses.Typically, after more than 3 reuses, the overall cost is lower than that of disposable wooden structures(including labor, transportation, and waste disposal fees).

Scenarios not recommended: unclear objectives, single use, height exceeding 4.5 meters

• Temporary display with unclear objectives: If you are not sure what products to place in the booth, whether to use light boxes or partitions, the modularity of Fast62 may actually limit later modifications (welded corner brackets, once welded, require cutting for disassembly and modification).It is recommended to first use a standard aluminum profile system (such as Octanorm) for trial and error.

• Single use with extremely low budget: The initial procurement cost of Fast62 is higher than that of disposable wooden structures.If it is only used for one exhibition and there is no plan for reuse, wooden structures or rental are more cost-effective.Unless you clearly know you will use it again, do not buy it.

• Need to build a height exceeding 4.5 meters: Fast62 max height 4.5m.If the booth requires a height of 5m or more (e.g., two-story booth), heavy-duty steel frames or custom structures must be used instead.Fast62 cannot handle this, and it is not recommended to extend it yourself (structural safety cannot be guaranteed).

• Site restrictions: insufficient floor load capacity or limited ceiling height: A height of 4.5m requires a floor load capacity ≥500kg/m² (standard exhibition halls meet this), but older venues or temporary setup areas may not.Before placing an order, please confirm the floor load capacity with the venue and provide the venue floor plan to our team. We will help you assess whether reinforcement is needed.

Frequently Asked Questions

Q1: Can Fast62 be used for outdoor activities? Yes, but additional ballast and windproof anchors are required. The aluminum profile itself is weather-resistant, but the fabric needs to be waterproof and flame-retardant.

It is recommended to inform us of the outdoor usage scenario in advance, and we will provide wind load calculations and reinforcement accessory solutions.

Q2: I only have one exhibition, but I want to rent it out to customers later. Is it cost-effective? If you are a rental company, Fast62's durability (dozens of reuses) makes it suitable for rental. However, note that the welded corner brackets are non-detachable, resulting in larger transportation volume.

It is recommended to first evaluate whether your customer base generally needs 4.5m high booths; otherwise, standard aluminum profile systems (such as Fast40) are more flexible.

Q3: What are the advantages of Fast62 compared to ordinary aluminum profile display stands (such as octagonal columns)? The core difference isstructural strength. The octagonal column system is usually at most 2.5m-3m, and the connectors are prone to loosening.

Fast62's welded corner fittings + 62mm profiles can stably support 4.5m, and the overall rigidity is better, suitable for large-area drapes or heavy light boxes.

Q4: If I want to change the height later, can I saw the profiles shorter? Yes, but it requires re-drilling holes and re-welding corner fittings, which is costly. It is recommended to confirm the final height when placing the first order, or choose adjustable accessories (such as telescopic columns).

If you need to make changes later, please inform us in advance, and we will recommend a reserved interface solution.

Q5: What is the fire rating of Fast62? The aluminum profile itself is non-combustible, and the matching fabric can be selected with B1 grade (Chinese standard) or M1 grade (European standard) flame-retardant fabric. The specific grade depends on the fabric model you choose. We will provide the corresponding test report when you place the order.

Learn More

If you are planning a 4.5-meter ultra-high exhibition booth, or have questions about the load-bearing capacity and diagonal bracing solutions of Fast62, please provide your booth dimensions, expected usage frequency, and hanging object information. Our technical team will provide a matching solution for you.
